Product Details:
|
| Dimension: | 50CBM | Steering: | Left/Right |
|---|---|---|---|
| Fuel: | Diesel | Gear Box: | 12MT |
Dump semi-trailers use high-strength steel, making the tipper durable when loading sand, gravel, or rocks. The loading capacity is 80 tons.
The dump body is equipped with HYVA hydraulic cylinders. Using renowned brand axles (FUWA, BPW), it delivers high performance while extending service life.
Double-plate main beam for heavy-duty dump trailers ensures strong load-bearing capacity and high resistance to damage.
Hydraulic Cylinder: Heavy-duty cylinder with larger diameter provides enhanced lifting capacity, greater height, and more stable lifting operation with reduced rollover risk.
Reinforced structure with 4 sub-beams and a cross-balanced beam. The lattice design of the side doors significantly increases their strength.
Tipping Brackets: 4 tipping brackets allow more even loading at the rear during unloading, minimizing trailer damage.
Widened and thickened leaf springs deliver superior shock absorption.
Unique structural design effectively increases payload capacity.

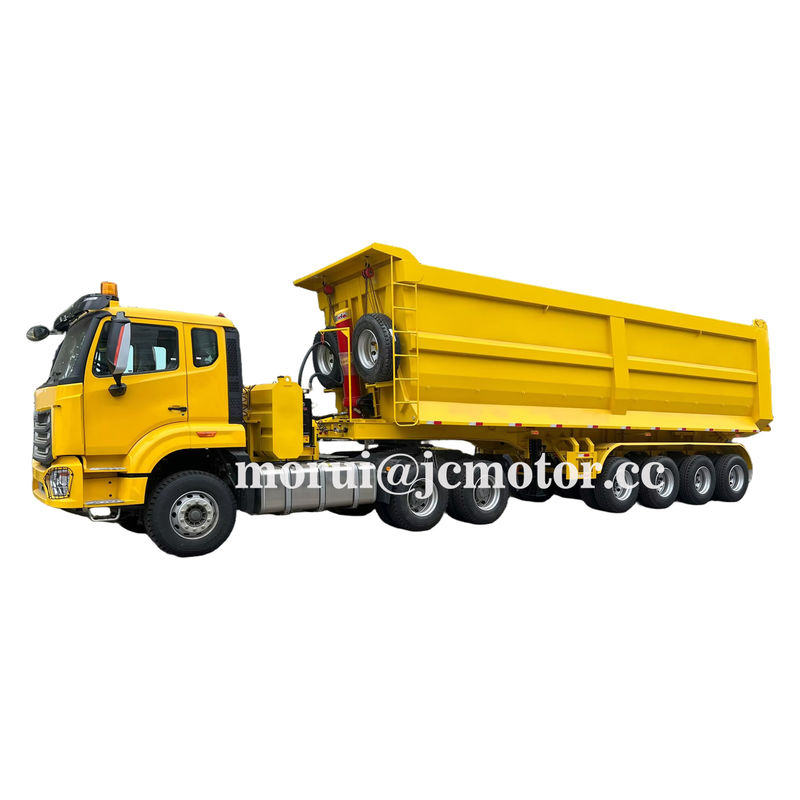

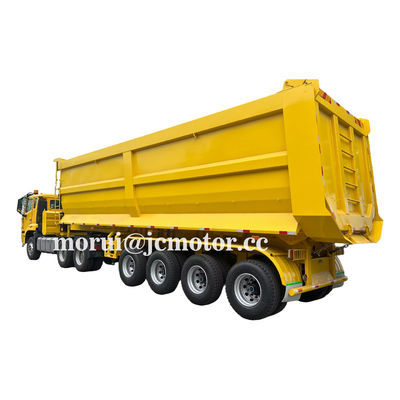

| Vehicle Type | 6X4 Tractor Tipper semi-trailer |
| Fuel Type | Diesel |
| Drive Type | Left Hand Drive / Right Hand Drive |
| Vehicle Dimension L*W*H(mm) | 7060*2550*3200 |
| Tipper semi-trailer Dimension L*W*H(mm) | 10320*3010*3900 |
| G.V.W(kg) | 98000 |
|
Payload(kg) |
80000 |
| Engine | Cummins/Weichai/Yuchai |
| Gearbox | FAST 12MT |
